Klaviyo x Submarine

1. Summary

Submarine integrates with Shopify Flow, allowing merchants to connect Submarine with their existing systems and use Flow to create customised workflows without any extra hassle. As a Klaviyo partner and many of our existing merchants using Klaviyo for customer email templates, we have made it as easy as we can for getting new notifications setup and sending from Klaviyo.

1.1 Available flows for Submarine Platform

Submarine has a selection of available flows that merchants can leverage to either communicate with customers or create operation workflows.

You can find a detailed list of all flows available here.

2. Getting started

2.1 Setting up Klaviyo in Shopify

The follow steps are a guide on installing Klaviyo to your Shopify store and connecting Klaviyo and Shopify so you can leverage Klaviyo flow actions.

Install the Klaviyo app here and follow the prompts to set up or connect your account

Once your account has been connected, select the account name in the lower left. Then, click integrations

Search for Shopify, then click Add Integration

Paste the store URL in the box, ensuring its in the format mystore.myshopify.com.

After configuring your settings, click Connect to Shopify. This will take you to your Shopify account. You may be prompted to log in to Shopify.

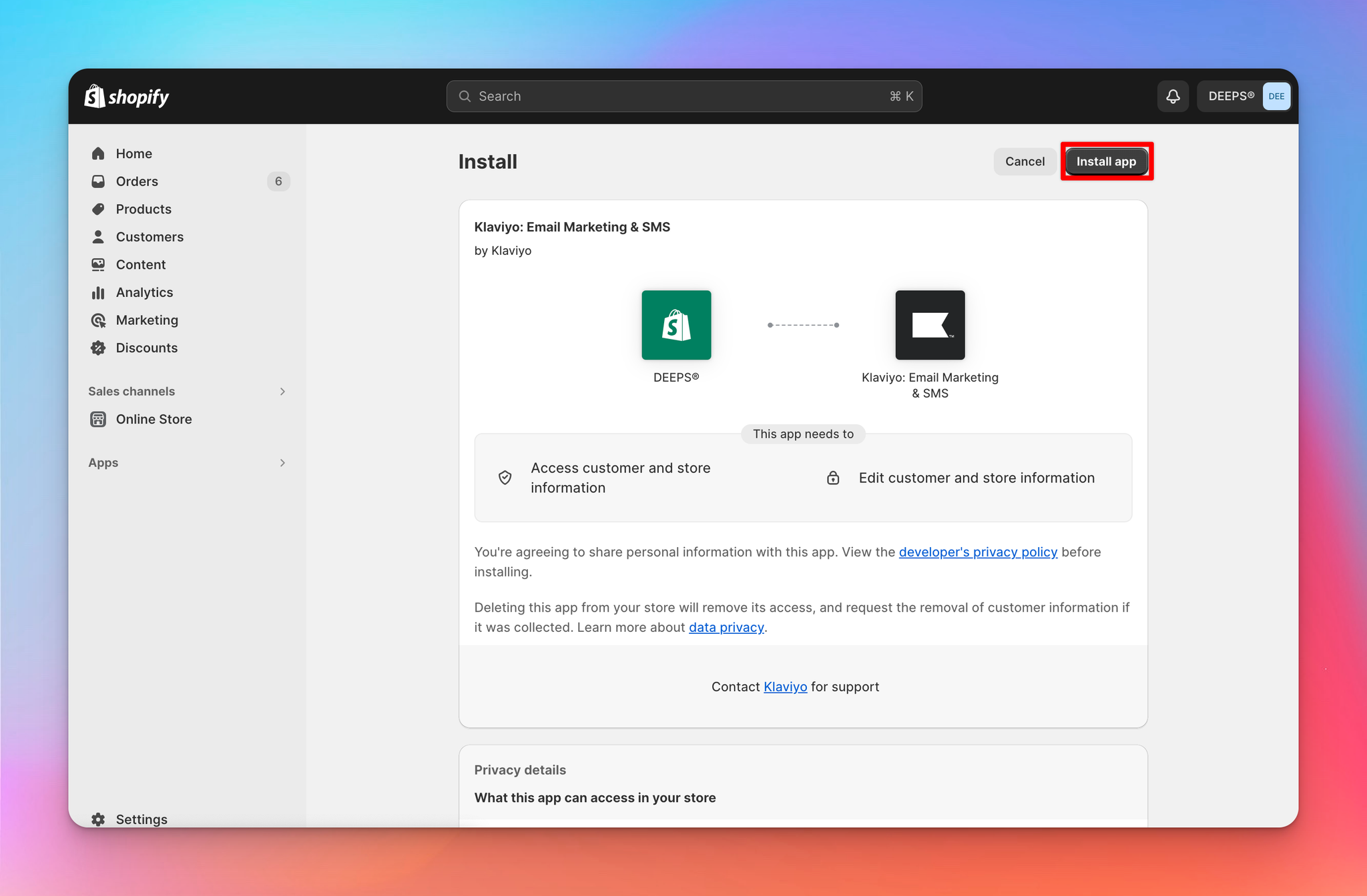

Review the permissions and click Install app. This begins syncing your Shopify data with Klaviyo and takes you back into your Klaviyo account.

2.2 Setting up Flow in Shopify

Install the Shopify Flow app, found here

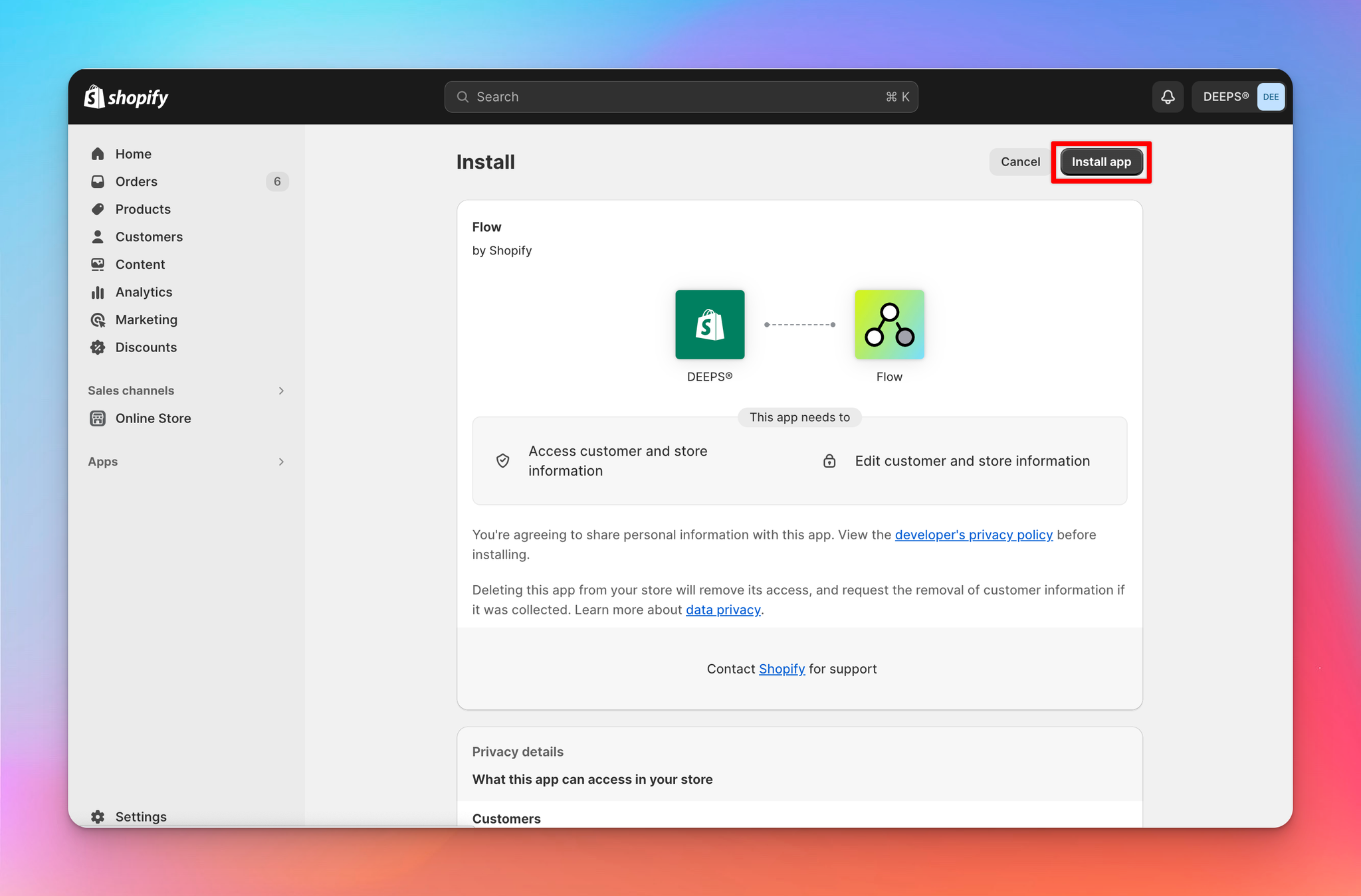

You’ll be redirected to this page, and click ‘install’, top right.

3. Setting up a workflow to Track an event in Klaviyo

You’re now ready to setup your first Shopify Flow to Track an Event in Klaviyo. These events will get sent across to Klaviyo and can be used to add customer properties or in Flows to email customers.

To setup a new flow you can start from scratch or import our boilerplate flows below, we would recommend importing at least one of our boilerplates so you can see the structure of the payload you need to send.

3.1 Option 1: Setup a workflow from scratch

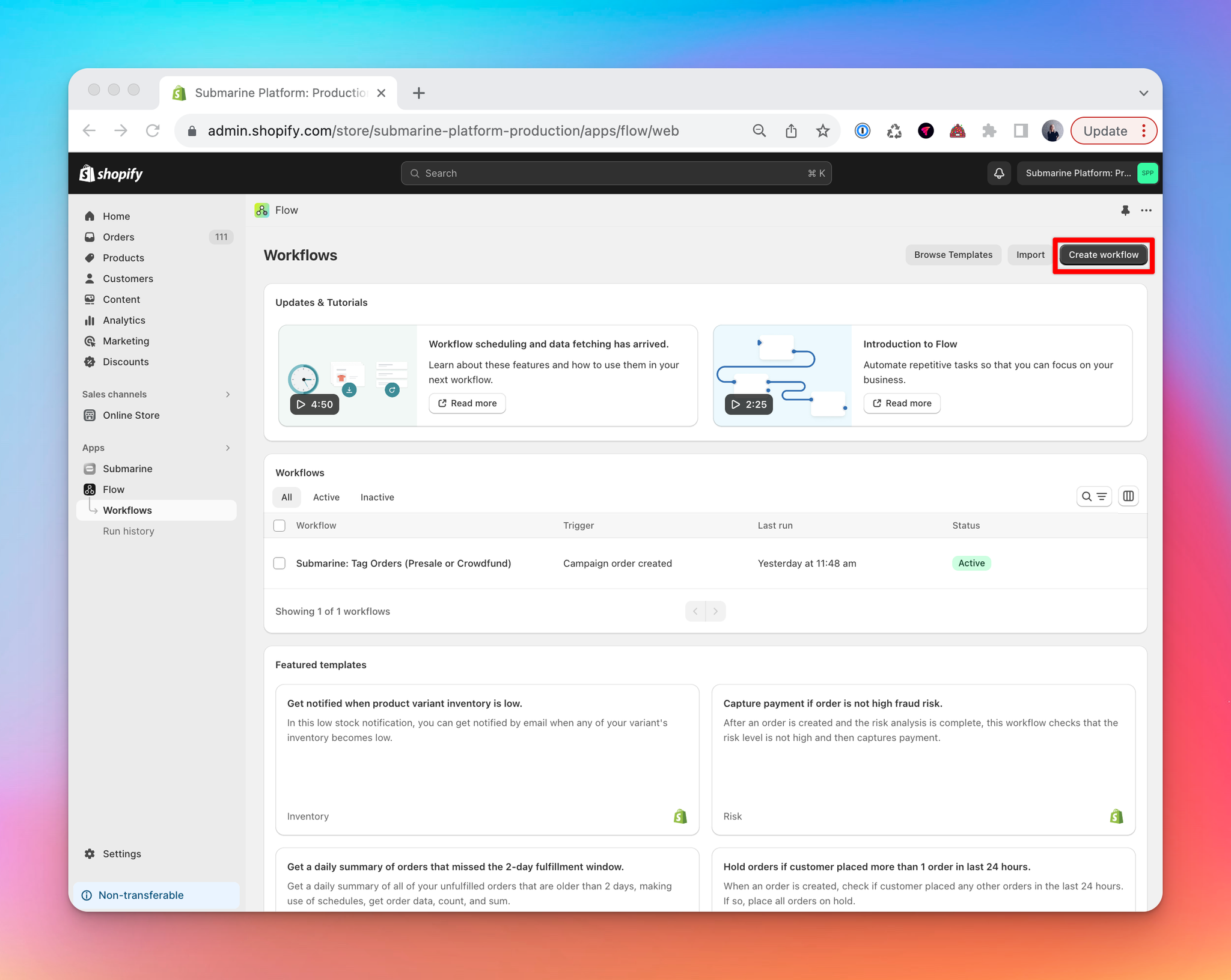

Step 1. Once you’ve installed the Shopify Flow and the Klaviyo app on your store. Open Flow and locate the ‘Create workflow’ button in the top right.

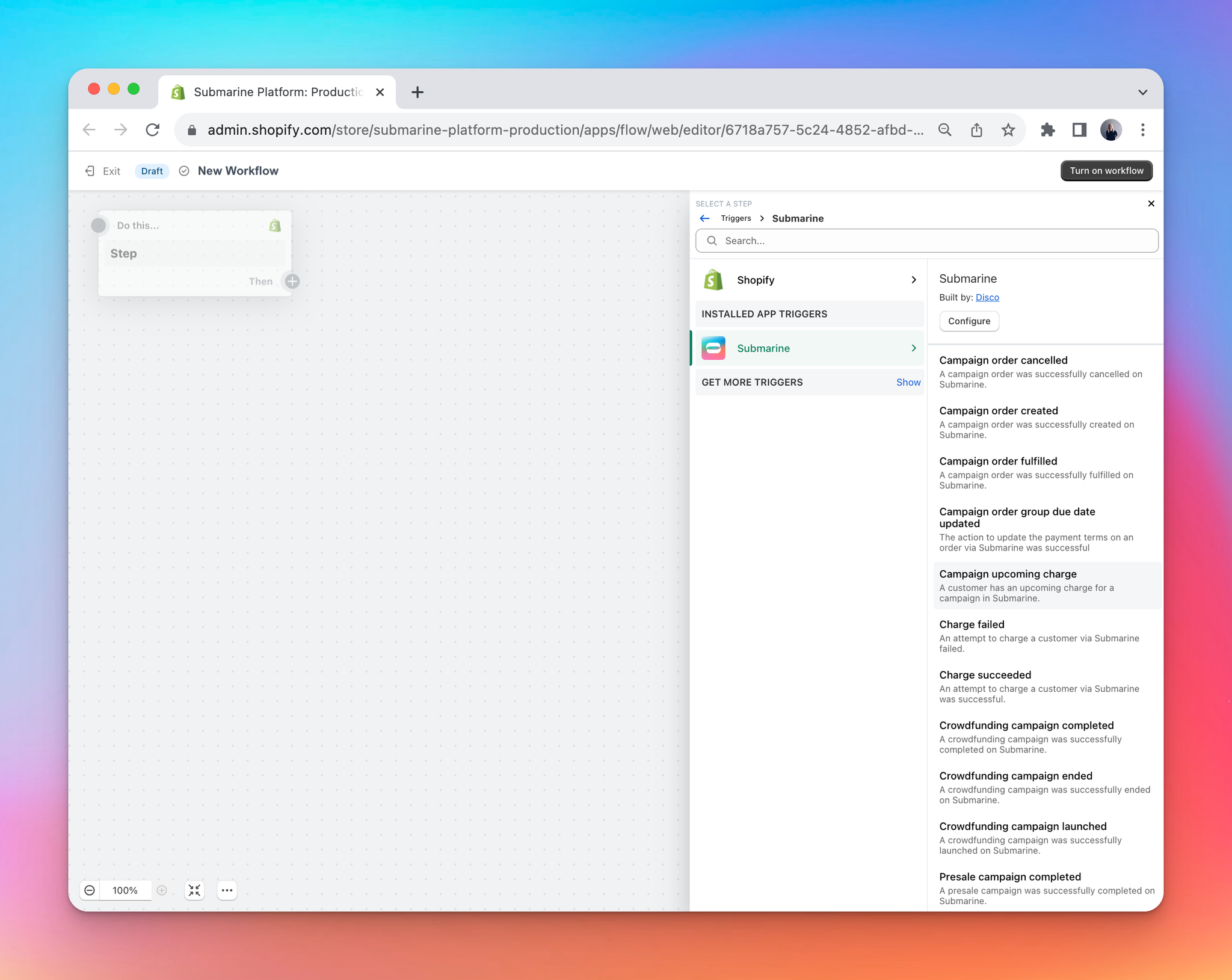

Step 2. Click on Submarine and you will see the range of Flow triggers we have available for to use. We’ll use ‘Campaign charged failed’ as an example to setup.

Select Submarine > Campaign charged failed as the trigger.

Step 3. After you select the trigger you will be asked to select between Condition or Action, if you have no Conditions for sending the trigger then click Action.

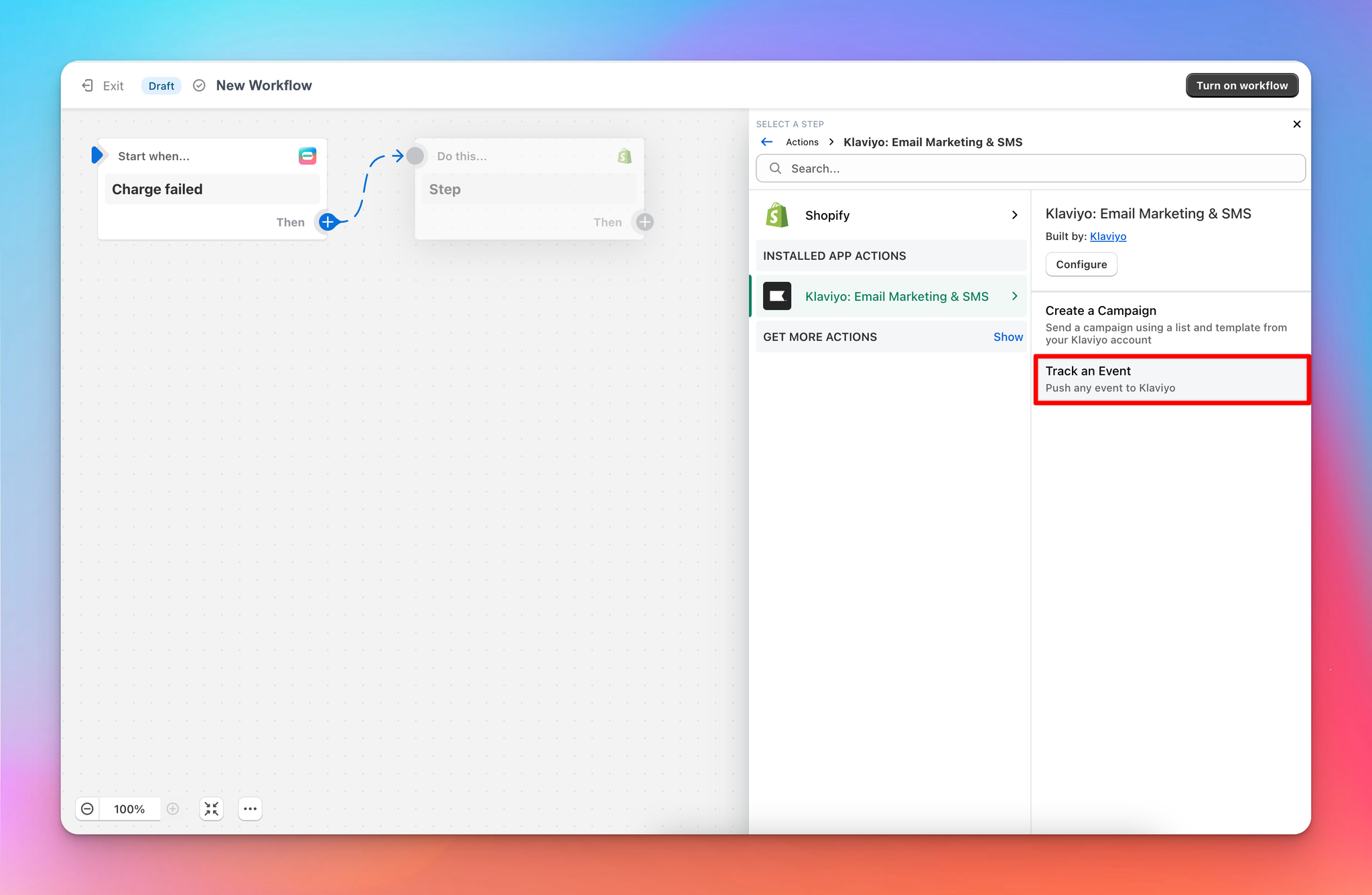

Then select the Klaviyo app on the right hand side tab, select ‘Track an event’

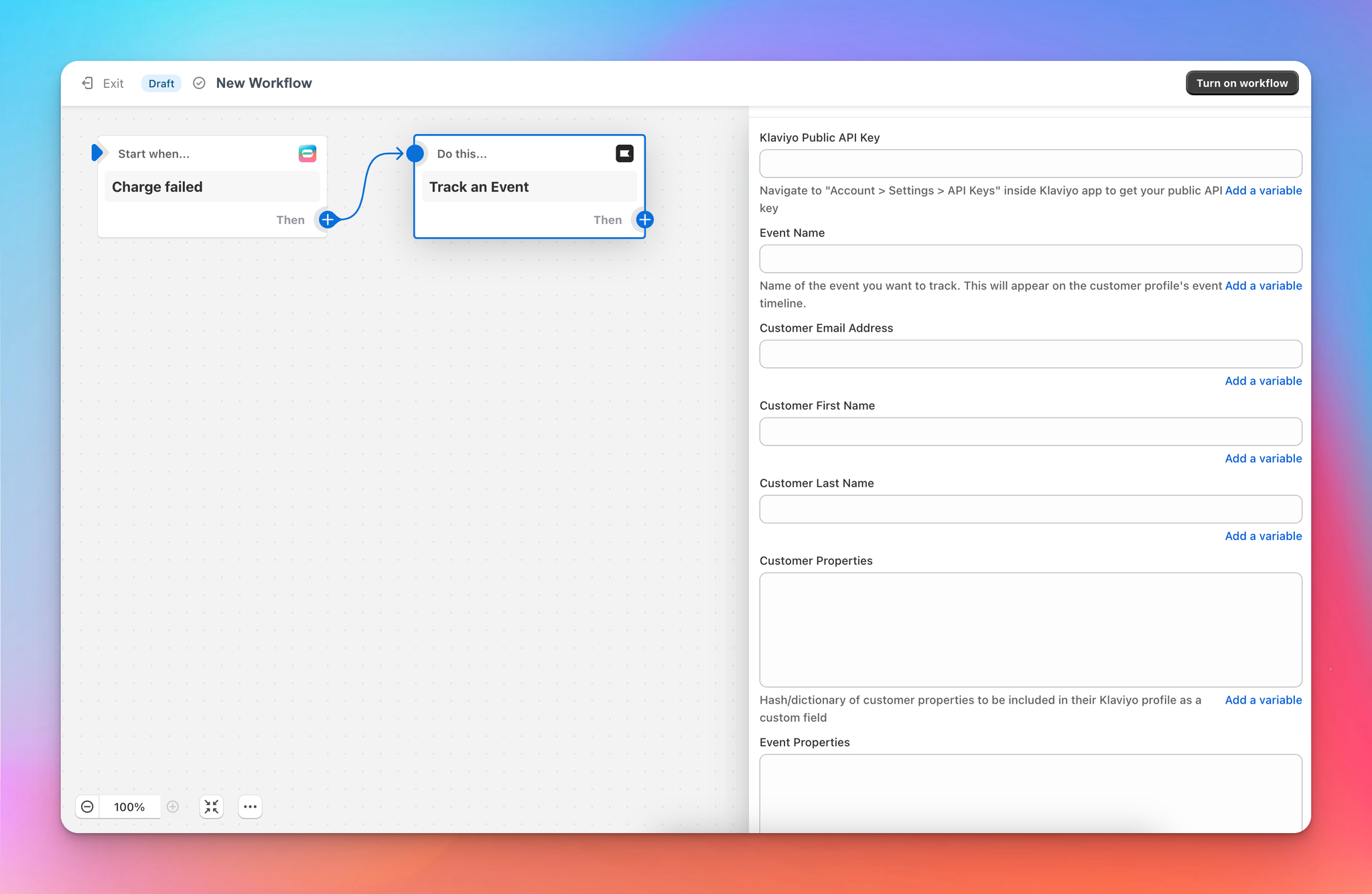

Step 4. The following form will show and you will need to add inputs for each entry so that when the trigger fire it sends that data over to Klaviyo.

🎵

Please note: Flows must always be written in camelCase.

You can populate your form with the follow;

Klaviyo Public API Key: Found in Account > Settings > API keys

Event name: Whichever event you are wanting to track. Different events can be found here For this example will be doing Upcoming preorder charge

Customer Email Address: {{customer.email}}

Customer First Name: {{customer.firstName}}

Customer Last Name: {{customer.lastName}}

Event Properties:

json
{
"campaignType": "{{campaignType}}",
"campaignName": "{{campaignName}}",
"campaignDescriptions": "{{campaignDescription}}",
"dueAt" : "{{dueAt}}",
"orderName" : "{{order.name}}"
}

Step 5. Name your workflow something easy to recognise and click Save.

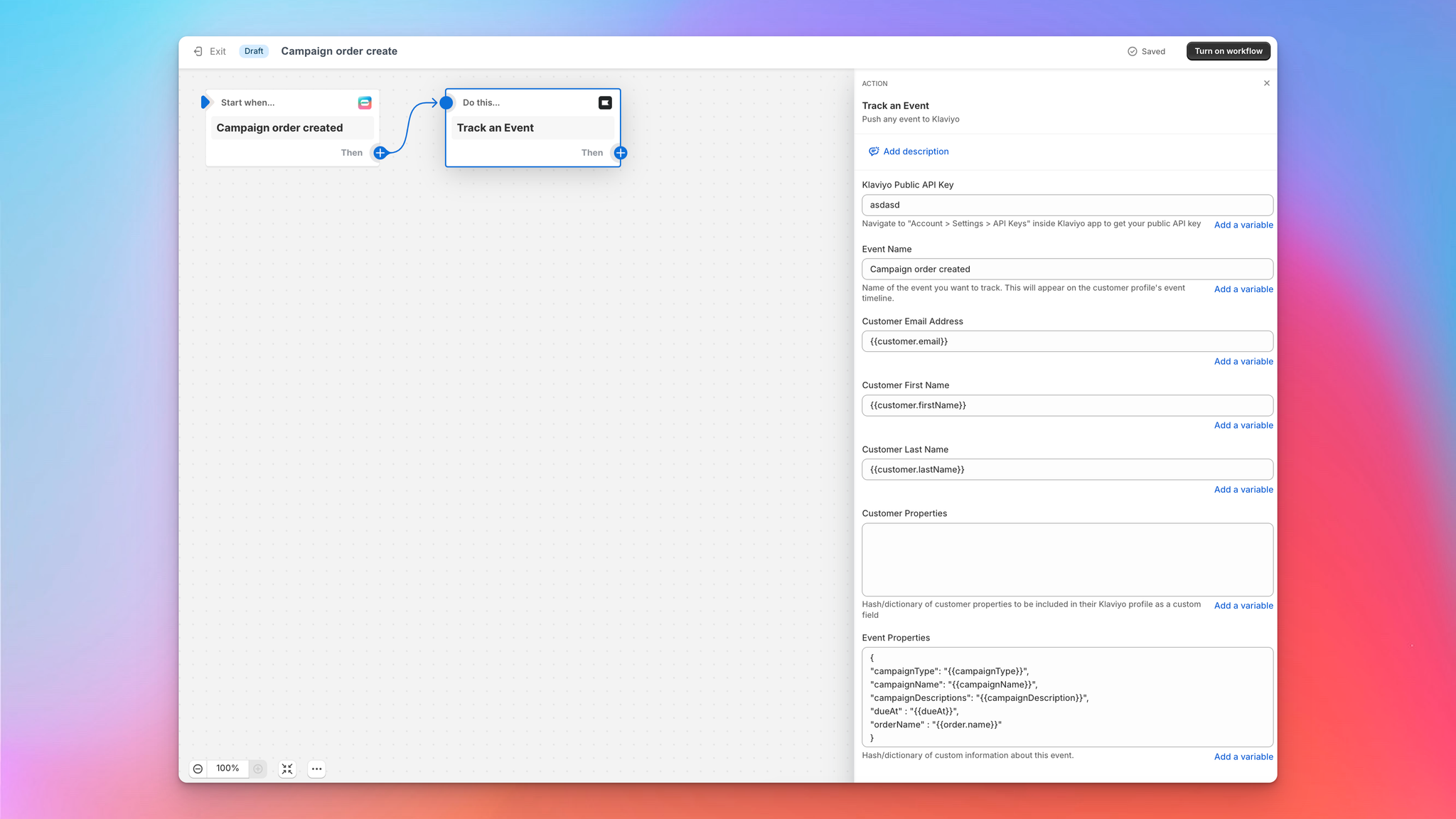

Your flow should look something like this when you’re done.

Step 6. Some workflows are simple to test and others are a bit more difficult, we have a section on firing the flow triggers below.

3.2 Option 2: Import boilerplate workflows

A quicker way to get started would be to import the files below to Flow and amend the API key to your own.

Step 1. Open Shopify and ensure you have both the Flow and Klaviyo app installed on the store.

Step 2: Open Shopify Flow app

Step 3: Select a downloadable file from our list below.

Subscription Flows

Subscription created.flow

2.7KB

Subscription updated.flow

2.7KB

Subscription order updated.flow

2.8KB

Upcoming subscription order.flow

2.0KB

Campaign Flows

Upcoming Order Charge Reminder.flow

2.3KB

Payment Failed.flow

1.2KB

Payment Succeeded.flow

1.2KB

Refund Succeeded.flow

1.2KB

Campaign order created.flow

2.1KB

Campaign Order Fulfilled.flow

1.3KB

Campaign Order Cancelled.flow

0.9KB

Presale Campaign Launched.flow

1.2KB

Presale Campaign Ended.flow

1.1KB

Presale Campaign Completed.flow

1.2KB

Crowdfunding Campaign Launched.flow

1.7KB

Crowdfunding Campaign Ended.flow

1.6KB

Crowdfunding Campaign Completed.flow

1.6KB

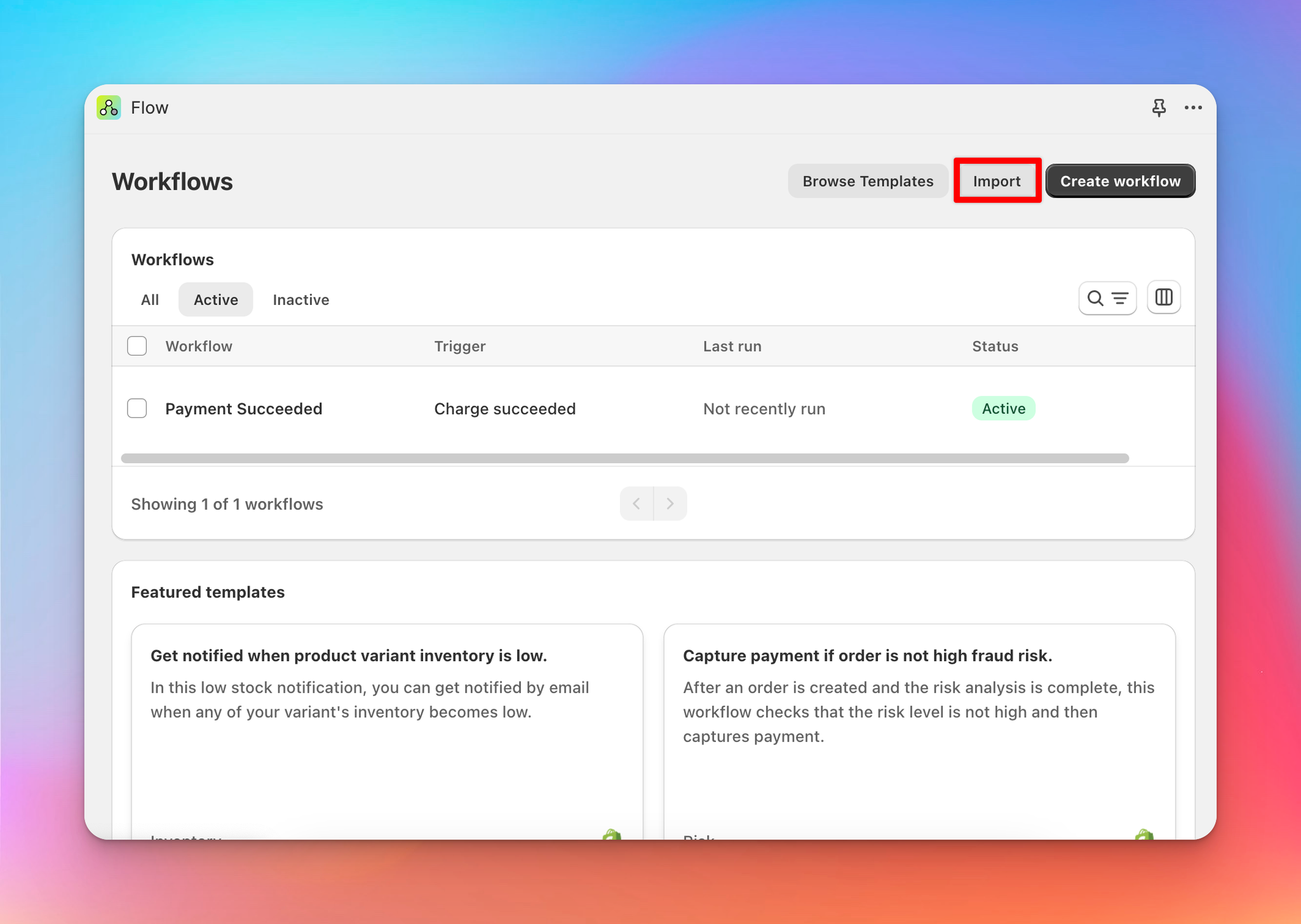

Step 4: Click Import from the top right

Step 5: Select the files you downloaded in Step 3.

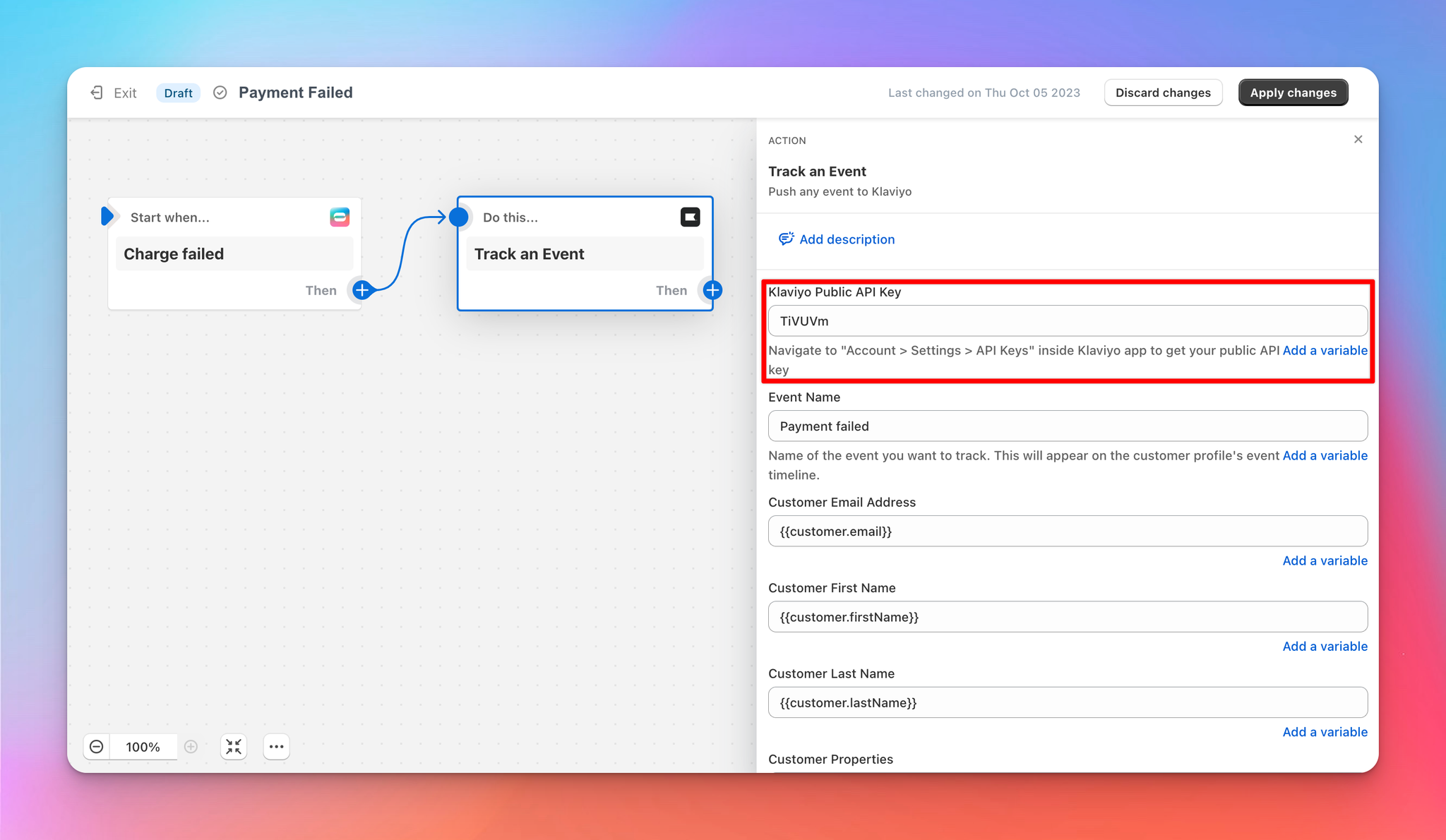

Step 6: Once imported you will need to edit each workflow Track even Action to have your Klaviyo accounts Public key.

To find this, in Klaviyo navigate to "Account > Settings > API Keys"

Replace the Public API key with yours and click Apply changes.

Step 8: Test your new workflows using the guide linked below.

4. Testing your Presale flow triggers

4.1 Charge failed

To test a charge failure trigger you will need to first place a test order with a card that will succeed at checkout and then change the payment method to one that will fail, listed below. This is because Shopify checkout will reject the failing card at checkout, but not if we attach it later.

Start by placing an order with a regular test card during checkout.

Once a Campaign order is created, navigate to the Customer account on Shopify and open the Payment methods you used at checkout.

Select the card you used, click Replace card, and enter the details below.

Card number: 4000000000000341

Expiry: 12/26

CSV: 123

ℹ️

Please note this test card only works in Shopify payments test mode

Once this is done you can attempt capturing the Campaign order.

4.2 Charge succeeded

Testing this flow trigger will require you to place a test campaign with a card that will succeed, wait till the campaign or payment is due to charge and once it’s successfully charged the flow will run and the event will be tracked in Klaviyo.

4.3 Refund succeeded

Testing this flow will require a Campaign order with a successful deposit charge made on it, your settings in Submarine will need to have the Refund deposits checkbox set to true (checked) and you will need to cancel the campaign order from Submarine before the full payment is taken. Once this is done the flow will run and the event will be tracked in Klaviyo.

4.4 Campaign upcoming charge

Testing the flow trigger requires a few days or an adjustment to your store's configuration which can be done by the Submarine team. The default configuration for all stores is 2 days prior to a Submarine related charge but it can be reduced for testing purposes if requested.

4.5 Campaign order created, fulfilled, or canceled.

Testing this flow trigger requires you to create a campaign and place an order against it. Once you place an order against the campaign this flow trigger will fire, to trigger fulfillment you can run the campaign to its end. To fire the cancellation flow you will need to cancel the campaign order.

4.8 Presale & Crowdfunding campaign launched, ended, and completed

To test this workflow you’ll need to move a campaign through each status. For each status change you’ll trigger a workflow.

5. Testing your Subscription flow triggers

5.1 Subscription Billing Attempt Failure

To test a subscription billing attempt failure trigger you will need to first place a test order with a card that will succeed at checkout and then change the payment method to one that will fail, listed below. This is because Shopify checkout will reject the failing card at checkout, but not if we attach it later.

Start by placing an order with a regular test card during checkout.

Once a subscription is created, navigate to the Customer account on Shopify and open the Payment methods you used at checkout.

Select the card you used, click Replace card, and enter the details below.

Card number: 4000000000000341

Expiry: 12/26

CSV: 123

ℹ️

Please note this test card only works in Shopify payments test mode

Once this is done you can attempt capturing the next Upcoming subscription order. To do this, navigate to the Subscription and open their next order, click More actions and Process now.

5.2 Subscription created

To test this trigger you will need to place an order for a Subscription item at checkout. Once the order has gone through, wait a few minutes, and you should see this flow has run.

5.3 Subscription updated

To test this trigger you will need an existing subscription and make an update to it, this can be a change in status, delivery address edits or product changes. Once you save the changes wait a few moments and then this trigger will fire.

5.4 Subscription order created

Open an existing subscription or create a new one

Make an update to a specific upcoming subscription order, this can be a change in status, delivery address edits or product changes.

Save the changes and wait a few moments

Open the flow and check for recent runs.
